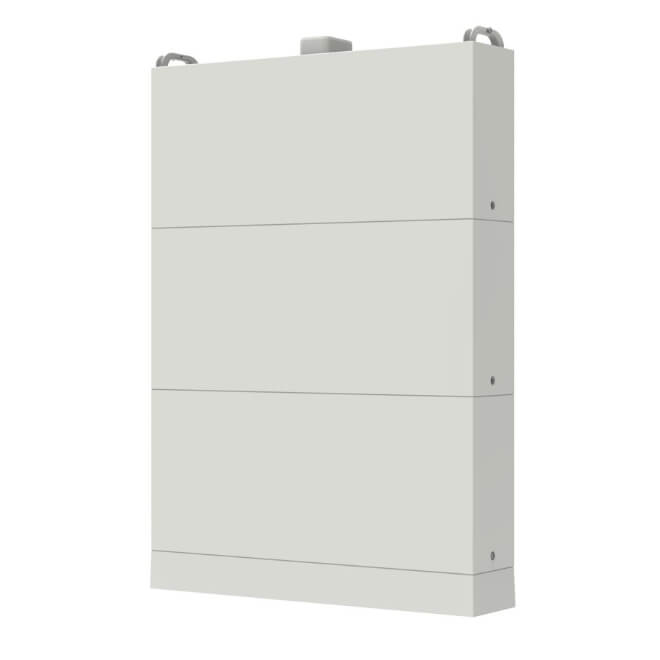

SolaX TP-HS50E IES 5.1kWh IP66 80-800V High Voltage Battery Module (HS50E-BAT)
SolaX HS50E-BAT (TP-HS50E) is an IES high voltage battery module rated 5.1kWh (50Ah) with 4.6kWh usable energy, delivering 3kW rated power and 5.1kW max power over an 80€“800V d.c. battery operating range with IP66 protection and up to 50 d.c. A max charge/discharge current; it is managed by the TBMS-MCS0800E using CAN/RS485 communications and carries certifications including CE, RCM and TUV (IEC62619), supporting efficient, lower-waste solar storage by enabling modular capacity growth and long service life planning with >6000 cycle capability.
Reach out to Green2Go's sales team via phone by calling 01424 231585 or via our 'Contact Us' page for bespoke renewable energy solutions. Benefit from expert advice and competitive pricing. Make your sustainable switch today.
Product Downloads
KEY FEATURES
- Rated charge/discharge power: 3kW
- Max charge/discharge power: 5.1kW
- 80800V d.c. battery operating range (IES system)
- IP66
- 50 d.c. A max charge/discharge current
- Rated energy: 5.1kWh (50Ah)
- Usable energy: 4.6kWh
- Stackable battery module for SolaX IES system (requires TBMS-MCS0800E)
- Cycle life: >6000 cycles
- CE, RCM, TUV (IEC62619), RoHS, REACH
- Colour / Finish White
Additional Information
- Dimensions (H x W x D) 318 x 730 x 150 (mm)
